Model

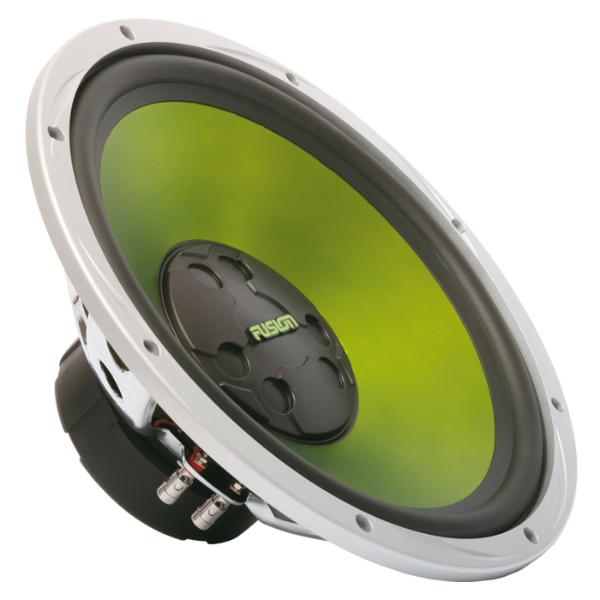

Fusion EN-SW150
Rating
DIAM
15"
FS(Hz)
23.8
VAS(l)
216.4
QTS
0.43
PWR(W)
500
SPL(dB)
90
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
23.8
Vas(l)
216.4
Qts
0.428
Qms
3.086
Qes
0.5
Bl(Tm)
15.1
Mms(gr)
217
Cms(mm/N)
0.206
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
86000
Vd(l)
0.516
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
349
Mounting Depth (mm)
153
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
