Model

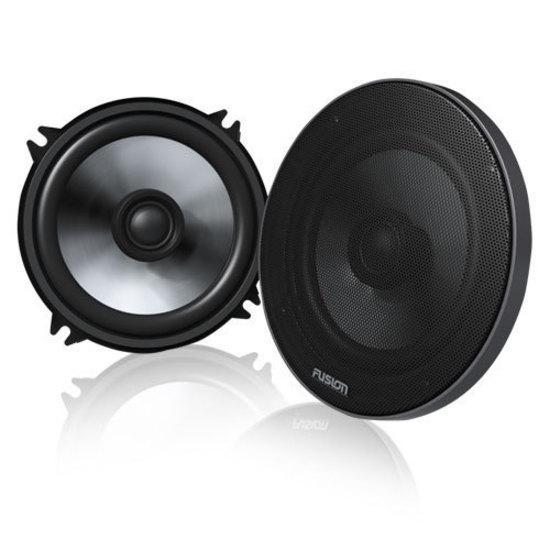

Fusion PF-FR5220
Rating
DIAM
5"
FS(Hz)
53.8
VAS(l)
14.8
QTS
0.41
PWR(W)
220
SPL(dB)
88.9
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
53.8
Vas(l)
14.8
Qts
0.411
Qms
4.075
Qes
0.457
Bl(Tm)
4.2
Mms(gr)
8
Cms(mm/N)
1.156
Rms(kg/s)
0.63
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
9503
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
220
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.49
Sensitivity(dB) 1-W
88.9
Sensitivity(dB) 2.8-V
93
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
