Model

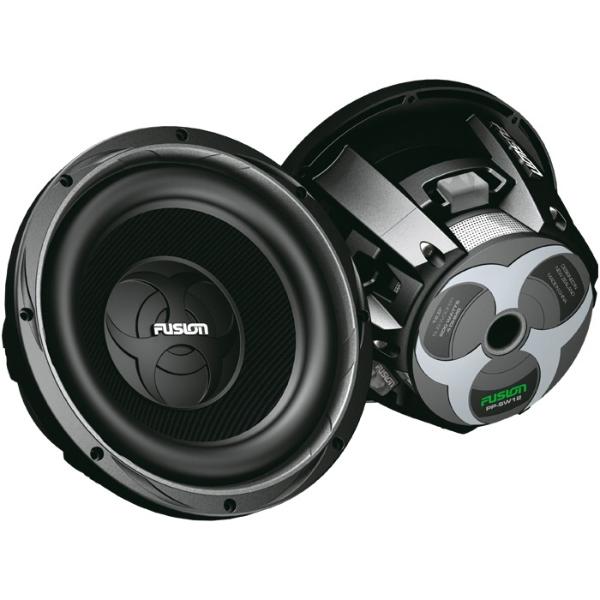

Fusion PP-SW120
Rating
DIAM
12"
FS(Hz)
37
VAS(l)
71.1
QTS
0.42
PWR(W)
1200
SPL(dB)
0
IMP(Ohm)
2x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
71.1
Qts
0.42
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
