Model

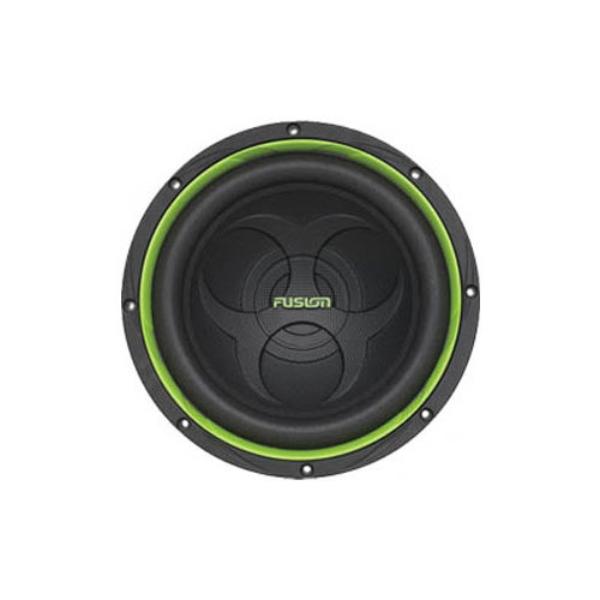

Fusion PP-SW12E
Rating
DIAM
12"
FS(Hz)
27.6
VAS(l)
85
QTS
0.36
PWR(W)
900
SPL(dB)
88.5
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27.6
Vas(l)
85
Qts
0.36
Qms
4.65
Qes
0.39
Bl(Tm)
10.4
Mms(gr)
134
Cms(mm/N)
0.248
Rms(kg/s)
4.99
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
49159
Vd(l)
0.688
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
900
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
291
Mounting Depth (mm)
168
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
