Model

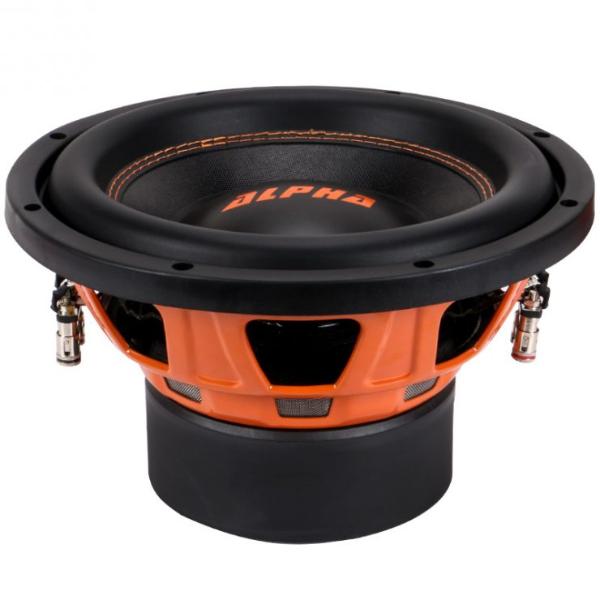

GAS ALPHA 10D2
Rating
DIAM
10"
FS(Hz)
35.2
VAS(l)
23
QTS
0.3
PWR(W)
700
SPL(dB)
86.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.2
Vas(l)
23
Qts
0.3
Qms
1.48
Qes
0.376
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
89.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
