Model

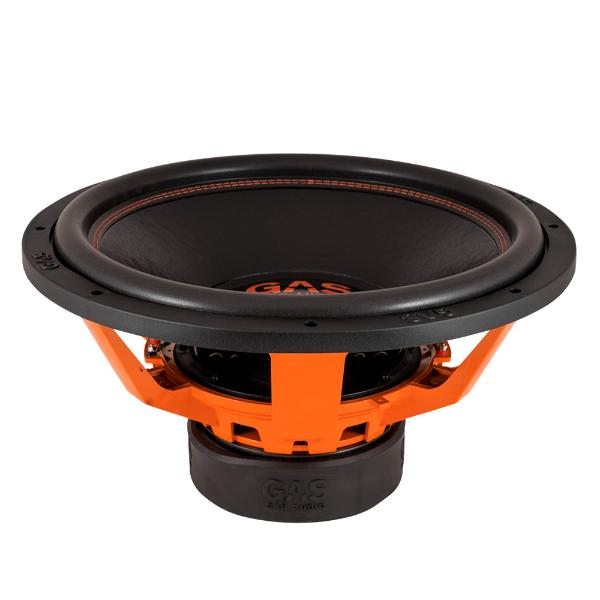

GAS GAS GPP18D1
Rating
DIAM
18"
FS(Hz)
29.3
VAS(l)
180.8
QTS
0.57
PWR(W)
0
SPL(dB)
90.5
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.3
Vas(l)
180.8
Qts
0.57
Qms
6.3
Qes
0.62
Bl(Tm)
14.9
Mms(gr)
325
Cms(mm/N)
0.09
Rms(kg/s)
9.51
Le(mH)
3.08
Re(Ohm)
2.3
Sd(sq.mm)
119459
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
0
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.71
Sensitivity(dB) 1-W
90.5
Sensitivity(dB) 2.8-V
95.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
425
Mounting Depth (mm)
232
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
