Model

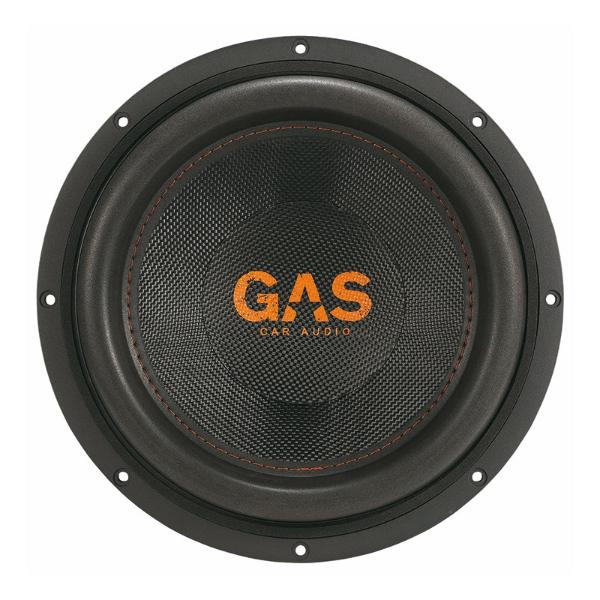

GAS PRO GPX1244
Rating
DIAM
12"
FS(Hz)
36.6
VAS(l)
29.6
QTS
0.68
PWR(W)
2000
SPL(dB)
84.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36.6
Vas(l)
29.6
Qts
0.675
Qms
7.036
Qes
0.747
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.7
Sensitivity(dB) 2.8-V
91.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
200
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
