Model

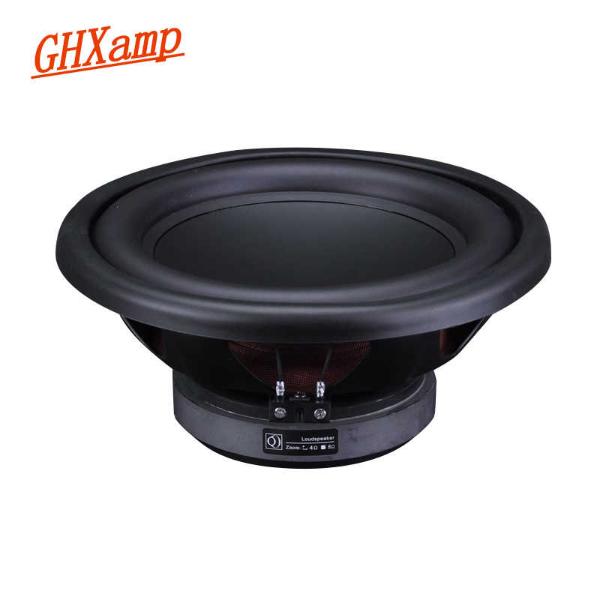

GHXamp 10INCH SUBWOOFER
Rating
DIAM
10"
FS(Hz)
37
VAS(l)
29
QTS
0.49
PWR(W)
400
SPL(dB)
86
IMP(Ohm)
4x0
avb
PROD
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
29
Qts
0.49
Qms
3.6
Qes
0.57
Bl(Tm)
11
Mms(gr)
88
Cms(mm/N)
0.21
Rms(kg/s)
5.68
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
31000
Vd(l)
0.465
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
0
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
262
Cutout Diameter (mm)
236
Mounting Depth (mm)
0
Magnet Diameter (mm)
145
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
