Model

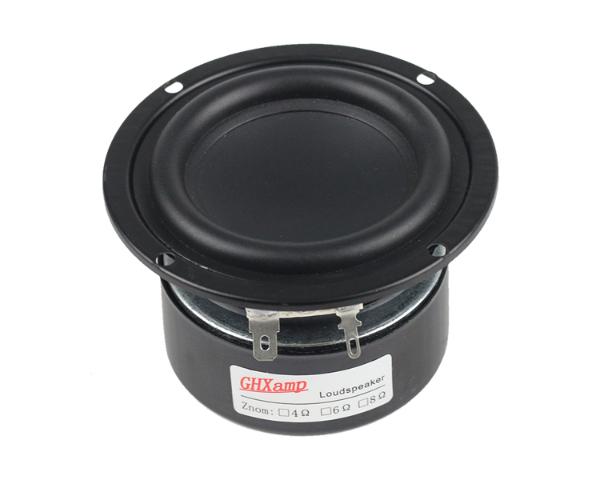

GHXamp 3 INCH 25W
Rating
DIAM
3"
FS(Hz)
81.2
VAS(l)
2.5
QTS
0.62
PWR(W)
25
SPL(dB)
84.6
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
81.2
Vas(l)
2.5
Qts
0.62
Qms
5.04
Qes
0.71
Bl(Tm)
2
Mms(gr)
2
Cms(mm/N)
2.2
Rms(kg/s)
0.2
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
2831
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
25
RMS Power(W.)
15
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
71
Mounting Depth (mm)
55
Magnet Diameter (mm)
67
Optimum Enclosures
Enclosures
Vented, BP6
