Model

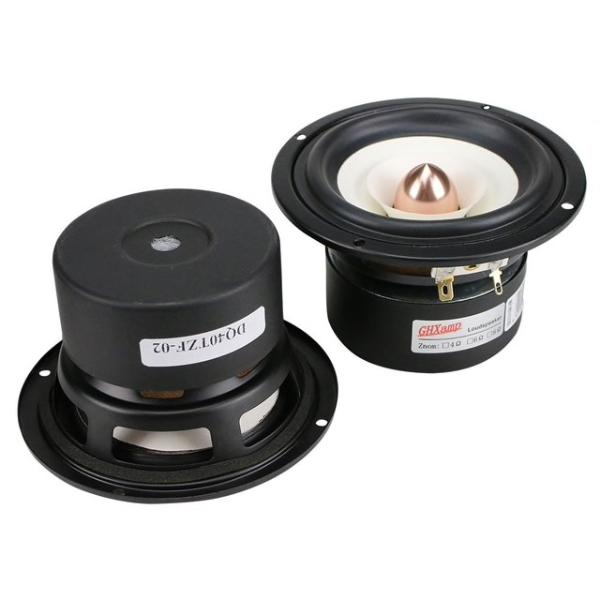

GHXamp 4 INCH 12W FULL RANGE SPEAKER
Rating
DIAM
4"
FS(Hz)
61
VAS(l)
10.6
QTS
0.46
PWR(W)
15
SPL(dB)
87.8
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
61
Vas(l)
10.6
Qts
0.46
Qms
6
Qes
0.61
Bl(Tm)
2.4
Mms(gr)
3
Cms(mm/N)
2.723
Rms(kg/s)
0.1
Le(mH)
0.1
Re(Ohm)
3.7
Sd(sq.mm)
5239
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
15
RMS Power(W.)
12
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
91.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
116
Cutout Diameter (mm)
93
Mounting Depth (mm)
69
Magnet Diameter (mm)
78
Optimum Enclosures
Enclosures
Vented, BP6
