Model

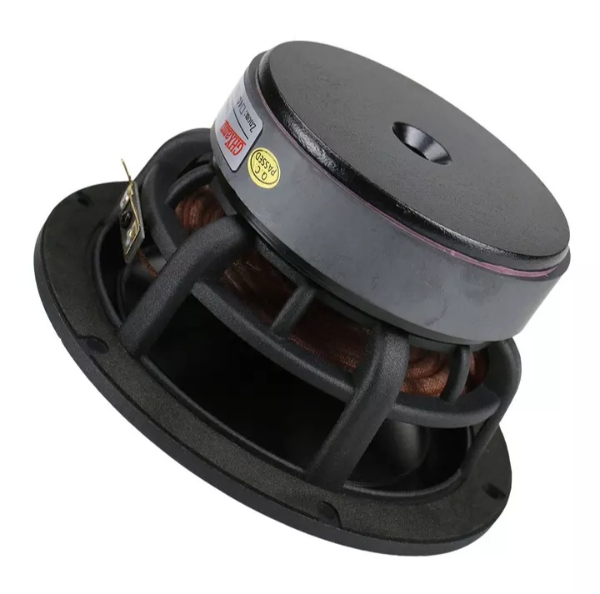

GHXamp 5.25 INCH 60W
Rating
DIAM
5"
FS(Hz)
55
VAS(l)
10
QTS
0.32
PWR(W)
60
SPL(dB)
88.8
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
10
Qts
0.32
Qms
4.036
Qes
0.338
Bl(Tm)
6.9
Mms(gr)
11
Cms(mm/N)
0.795
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
4.4
Sd(sq.mm)
9503
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
60
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.47
Sensitivity(dB) 1-W
88.8
Sensitivity(dB) 2.8-V
91.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
152
Cutout Diameter (mm)
127
Mounting Depth (mm)
76
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6P
