Model

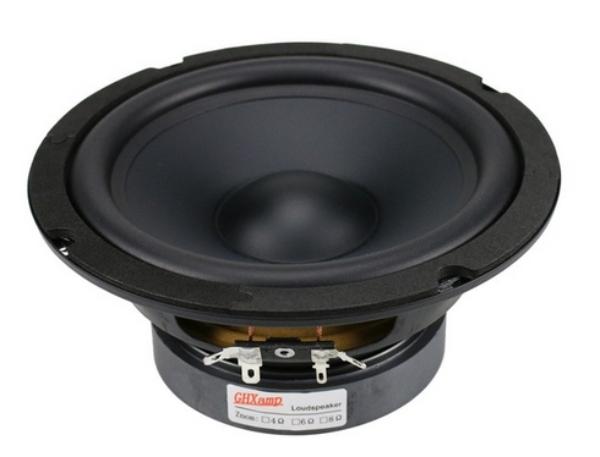

GHXamp 6.5 130W
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
5"
FS(Hz)
71.4
VAS(l)
10
QTS
0.9
PWR(W)
130
SPL(dB)
86.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
71.4
Vas(l)
10
Qts
0.9
Qms
3.1
Qes
1.26
Bl(Tm)
7.1
Mms(gr)
20
Cms(mm/N)
0.34
Rms(kg/s)
2.89
Le(mH)
0
Re(Ohm)
7
Sd(sq.mm)
14401
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
130
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
87
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
