Model

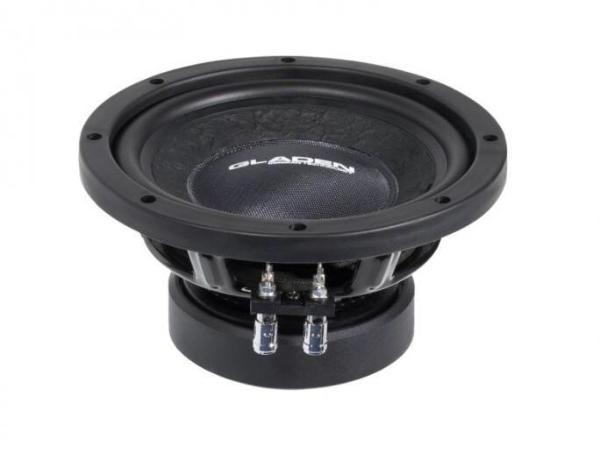

Gladen RS 10
Rating
DIAM
10"
FS(Hz)
31.2
VAS(l)
51
QTS
0.33
PWR(W)
375
SPL(dB)
88.3
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
31.2
Vas(l)
51
Qts
0.33
Qms
5.64
Qes
0.35
Bl(Tm)
14.1
Mms(gr)
96
Cms(mm/N)
0.27
Rms(kg/s)
3.351
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
36494
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
375
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.43
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
91.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
260
Cutout Diameter (mm)
236
Mounting Depth (mm)
152
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
