Model

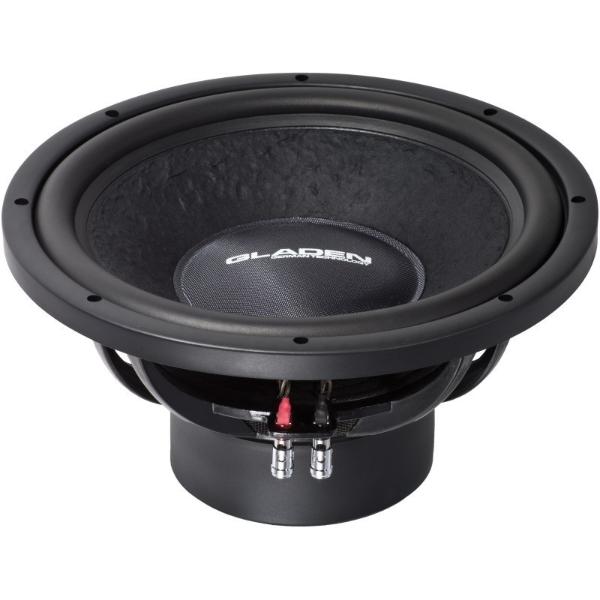

Gladen RS 12
Rating
DIAM
12"
FS(Hz)
26.3
VAS(l)
105.5
QTS
0.4
PWR(W)
600
SPL(dB)
88.3
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26.3
Vas(l)
105.5
Qts
0.4
Qms
6.03
Qes
0.43
Bl(Tm)
12.8
Mms(gr)
144
Cms(mm/N)
0.26
Rms(kg/s)
3.9
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
49000
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.43
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
91.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
317
Cutout Diameter (mm)
282
Mounting Depth (mm)
153
Magnet Diameter (mm)
150
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
