Model

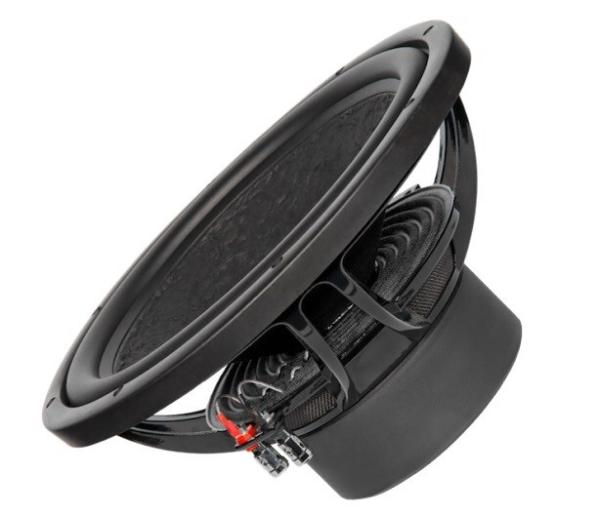

Gladen RS 15 FA(FREE-AIR)
Rating
DIAM
15"
FS(Hz)
27.6
VAS(l)
134.7
QTS
0.54
PWR(W)
650
SPL(dB)
88.6
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
27.6
Vas(l)
134.7
Qts
0.54
Qms
5.9
Qes
0.6
Bl(Tm)
16.6
Mms(gr)
238
Cms(mm/N)
0.14
Rms(kg/s)
7
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
83000
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
650
RMS Power(W.)
450
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.46
Sensitivity(dB) 1-W
88.6
Sensitivity(dB) 2.8-V
91.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
392
Cutout Diameter (mm)
354
Mounting Depth (mm)
176
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
Closed, BP4
