Model

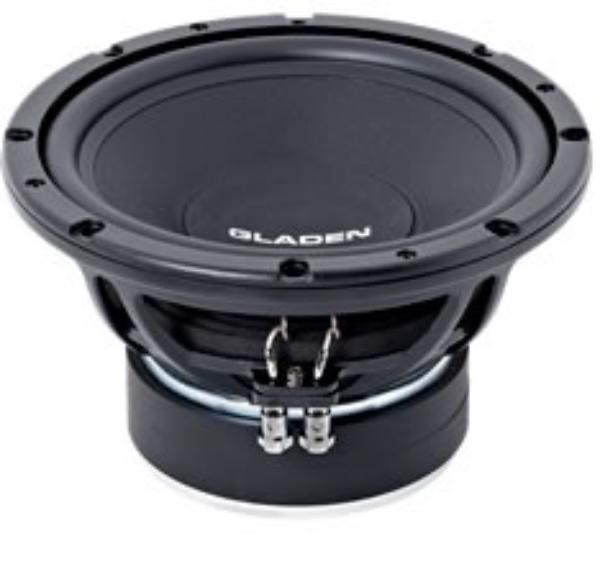

Gladen ZERO 12 PRO
Rating
DIAM
12"
FS(Hz)
27
VAS(l)
93.7
QTS
0.38
PWR(W)
750
SPL(dB)
88.5
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27
Vas(l)
93.7
Qts
0.38
Qms
6.32
Qes
0.4
Bl(Tm)
13.9
Mms(gr)
135
Cms(mm/N)
0.26
Rms(kg/s)
3.95
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
51000
Vd(l)
0.637
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
750
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
91.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
312
Cutout Diameter (mm)
283
Mounting Depth (mm)
152
Magnet Diameter (mm)
155
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
