Model

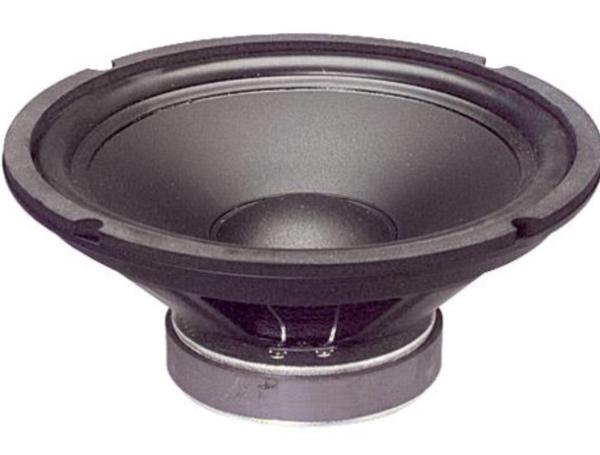

Goldwood Sound GW-1038
Rating
DIAM
10"
FS(Hz)
33.7
VAS(l)
90.3
QTS
1.1
PWR(W)
250
SPL(dB)
85.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
33.7
Vas(l)
90.3
Qts
1.1
Qms
4.4
Qes
1.5
Bl(Tm)
6.8
Mms(gr)
44
Cms(mm/N)
0.509
Rms(kg/s)
2.107
Le(mH)
0.6
Re(Ohm)
7.2
Sd(sq.mm)
35540
Vd(l)
0.089
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
250
RMS Power(W.)
130
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
86
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
254
Cutout Diameter (mm)
232
Mounting Depth (mm)
114
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
