Model

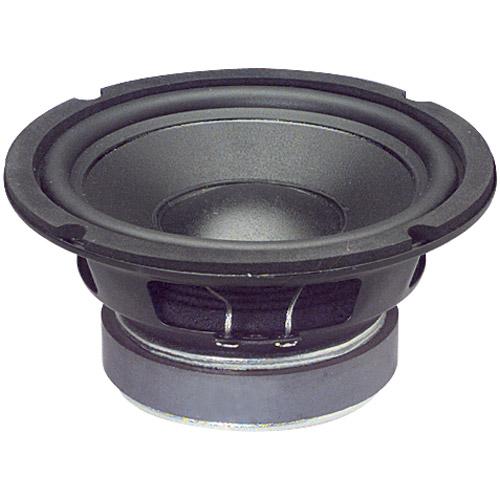

Goldwood Sound GW-6024
Rating
DIAM
6"
FS(Hz)
53.7
VAS(l)
12
QTS
0.57
PWR(W)
170
SPL(dB)
86
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
53.7
Vas(l)
12
Qts
0.57
Qms
3.048
Qes
0.71
Bl(Tm)
5.7
Mms(gr)
19
Cms(mm/N)
0.46
Rms(kg/s)
2.11
Le(mH)
0.4
Re(Ohm)
3.6
Sd(sq.mm)
13635
Vd(l)
0.034
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
170
RMS Power(W.)
90
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
89.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
152
Cutout Diameter (mm)
143
Mounting Depth (mm)
83
Magnet Diameter (mm)
98
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
