Model

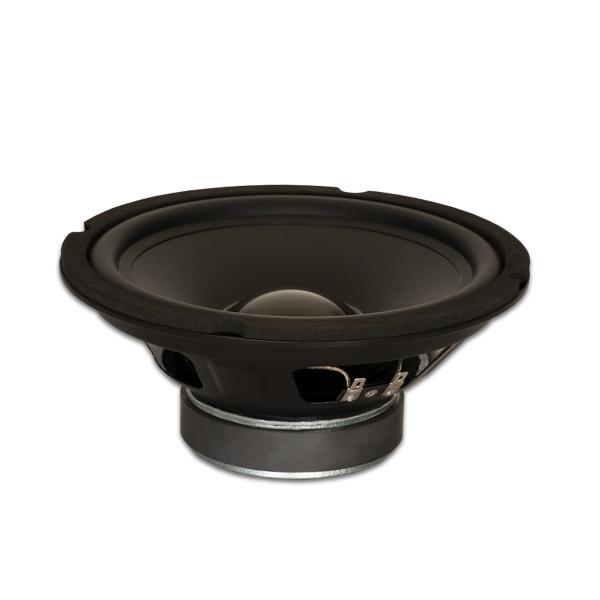

Goldwood Sound GW-8024
Rating
DIAM
8"
FS(Hz)
44.1
VAS(l)
30.6
QTS
0.73
PWR(W)
190
SPL(dB)
86.3
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
44.1
Vas(l)
30.6
Qts
0.734
Qms
3.4
Qes
0.934
Bl(Tm)
5.6
Mms(gr)
29
Cms(mm/N)
0.457
Rms(kg/s)
2.32
Le(mH)
0.4
Re(Ohm)
3.7
Sd(sq.mm)
21800
Vd(l)
0.054
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
190
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.27
Sensitivity(dB) 1-W
86.3
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
