Model

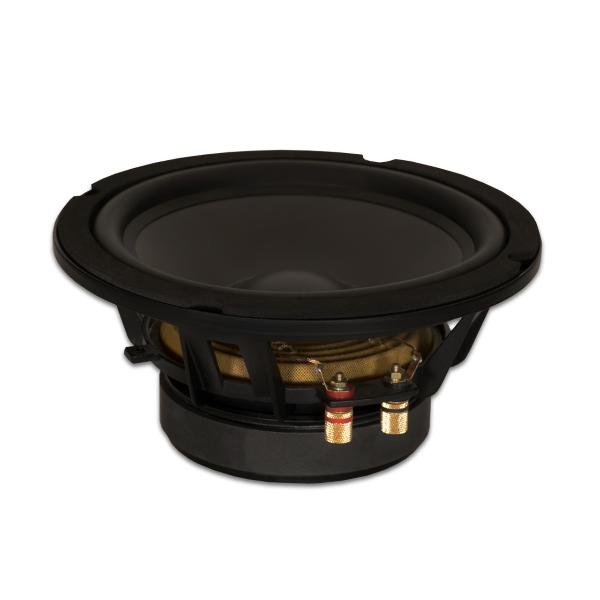

Goldwood Sound GW-8PC/4
Rating
DIAM
8"
FS(Hz)
44.2
VAS(l)
21.3
QTS
0.45
PWR(W)
320
SPL(dB)
87.6
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
44.2
Vas(l)
21.3
Qts
0.453
Qms
6
Qes
0.49
Bl(Tm)
8.7
Mms(gr)
36
Cms(mm/N)
0.357
Rms(kg/s)
1.68
Le(mH)
1.2
Re(Ohm)
3.7
Sd(sq.mm)
20590
Vd(l)
0.093
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
320
RMS Power(W.)
160
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.6
Sensitivity(dB) 2.8-V
90.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
203
Cutout Diameter (mm)
181
Mounting Depth (mm)
94
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
