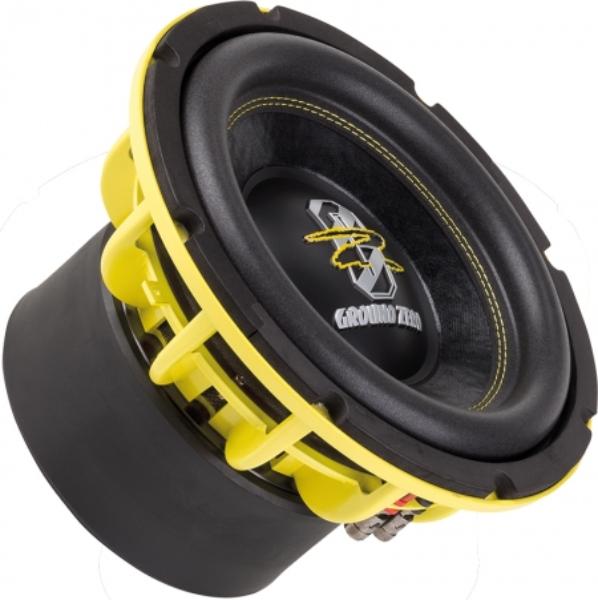

Ground Zero GZHW 10XSPL-D1
Ground Zero GZHW 10XSPL-D1
Model

Ground Zero GZHW 10XSPL-D1

Rating
DIAM
10"
FS(Hz)
40.5
VAS(l)
10.2
QTS
0.41
PWR(W)
2500
SPL(dB)
83.6
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
40.5
Vas(l)
10.2
Qts
0.412
Qms
5.504
Qes
0.445
Bl(Tm)
16.1
Mms(gr)
249
Cms(mm/N)
0.062
Rms(kg/s)
11.501
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
33992
Vd(l)
0.425
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
2500
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
240
Mounting Depth (mm)
155
Magnet Diameter (mm)
170

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
