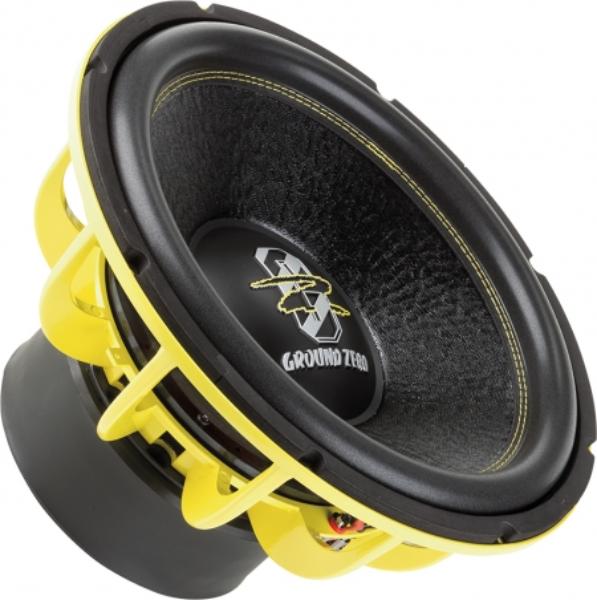

Ground Zero GZHW 15XSPL-D1
Ground Zero GZHW 15XSPL-D1
Model

Ground Zero GZHW 15XSPL-D1

Rating
DIAM
15"
FS(Hz)
36.8
VAS(l)
39.7
QTS
0.48
PWR(W)
3500
SPL(dB)
87.6
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
36.8
Vas(l)
39.7
Qts
0.482
Qms
5.793
Qes
0.526
Bl(Tm)
20
Mms(gr)
454
Cms(mm/N)
0.041
Rms(kg/s)
18.128
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
82607
Vd(l)
1.156
X-max(mm)
14
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
3500
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
356
Mounting Depth (mm)
208
Magnet Diameter (mm)
190

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
