Model

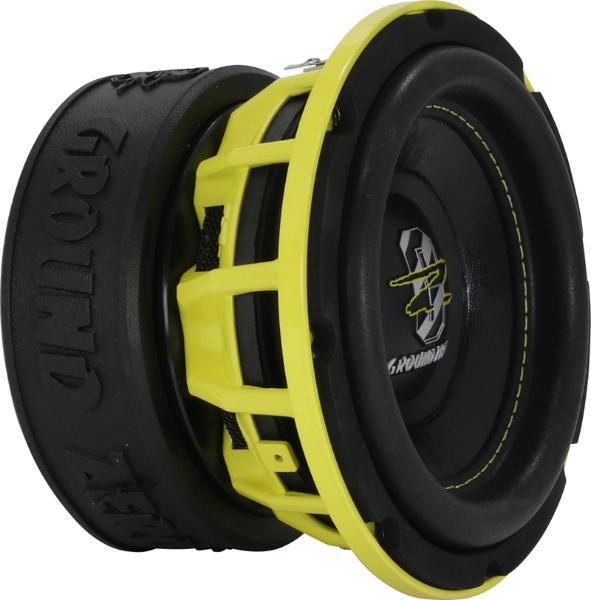

Ground Zero GZHW 16SPL
Rating
DIAM
6"
FS(Hz)
51
VAS(l)
2.8
QTS
0.46
PWR(W)
1000
SPL(dB)
80.6
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
51
Vas(l)
2.8
Qts
0.46
Qms
7.9
Qes
0.49
Bl(Tm)
15.5
Mms(gr)
97
Cms(mm/N)
0.101
Rms(kg/s)
3.92
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
13981
Vd(l)
0.419
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.07
Sensitivity(dB) 1-W
80.6
Sensitivity(dB) 2.8-V
83.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
177
Cutout Diameter (mm)
153
Mounting Depth (mm)
110
Magnet Diameter (mm)
144
Optimum Enclosures
Enclosures
BP6P, Vented
