Model

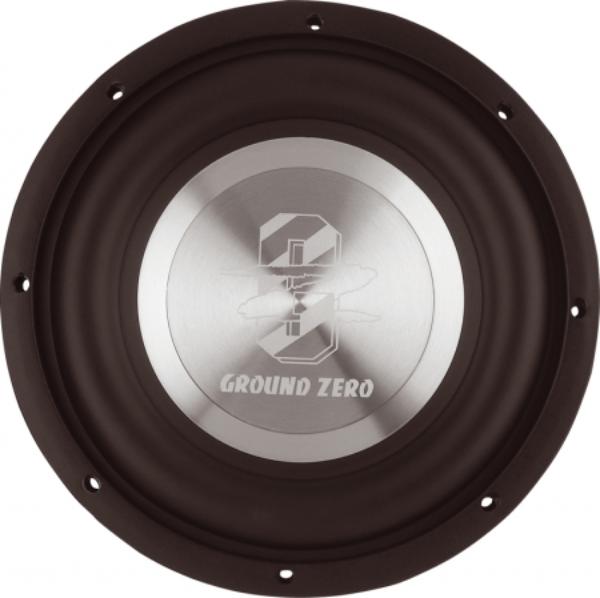

Ground Zero GZHW 25X
Rating
DIAM
10"
FS(Hz)
27.1
VAS(l)
27
QTS
0.37
PWR(W)
1000
SPL(dB)
83
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27.1
Vas(l)
27
Qts
0.37
Qms
4.09
Qes
0.407
Bl(Tm)
18.4
Mms(gr)
203
Cms(mm/N)
0.17
Rms(kg/s)
8.468
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
33464
Vd(l)
0.402
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
241
Mounting Depth (mm)
149
Magnet Diameter (mm)
157
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
