Model

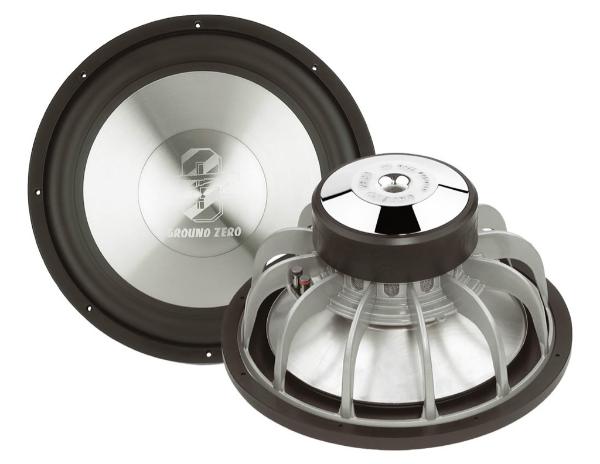

Ground Zero GZHW 38X
Rating
DIAM
15"
FS(Hz)
22.6
VAS(l)
147
QTS
0.43
PWR(W)
2000
SPL(dB)
88
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
22.6
Vas(l)
147
Qts
0.43
Qms
5.05
Qes
0.47
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
22
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
356
Mounting Depth (mm)
194
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
