Model

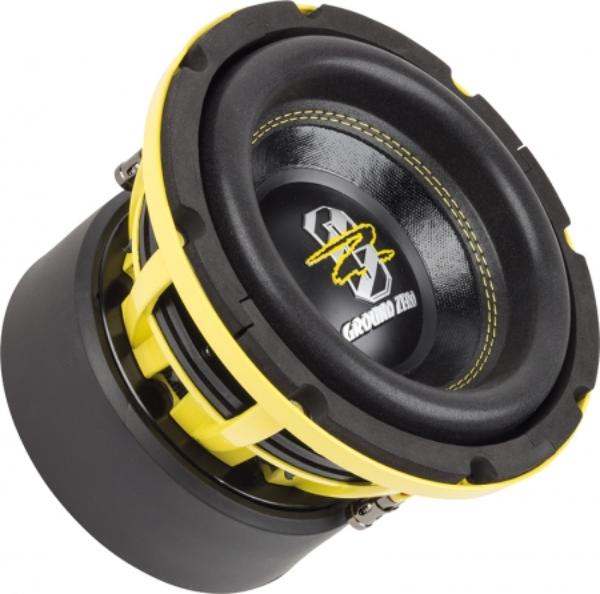

Ground Zero GZHW 8XSPL-D1
Rating
DIAM
8"
FS(Hz)
42.5
VAS(l)
3.6
QTS
0.47
PWR(W)
1500
SPL(dB)
79.3
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42.5
Vas(l)
3.6
Qts
0.473
Qms
7.695
Qes
0.504
Bl(Tm)
15
Mms(gr)
220
Cms(mm/N)
0.064
Rms(kg/s)
7.621
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
20053
Vd(l)
0.261
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
1500
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
79.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
188
Mounting Depth (mm)
150
Magnet Diameter (mm)
160
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
