Model

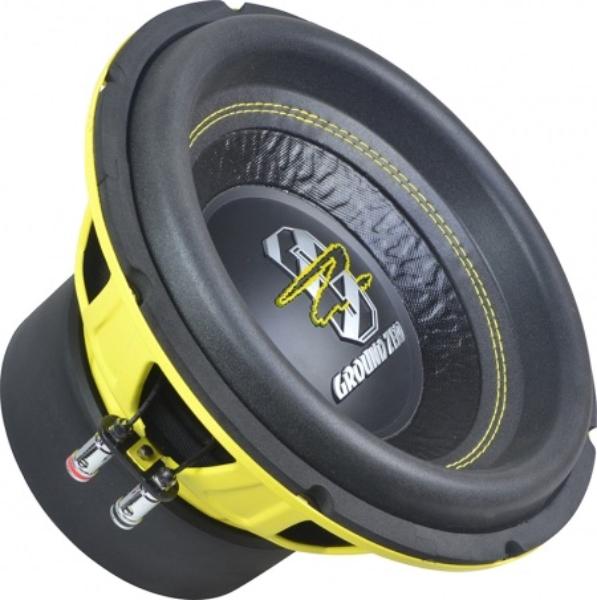

Ground Zero GZIW 10SPL
Rating
DIAM
10"
FS(Hz)
40.8
VAS(l)
14.3
QTS
0.62
PWR(W)
700
SPL(dB)
83.3
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40.8
Vas(l)
14.3
Qts
0.62
Qms
5.31
Qes
0.702
Bl(Tm)
16
Mms(gr)
181
Cms(mm/N)
0.084
Rms(kg/s)
8.733
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
34646
Vd(l)
0.381
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
700
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
86.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
147
Magnet Diameter (mm)
145
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
