Model

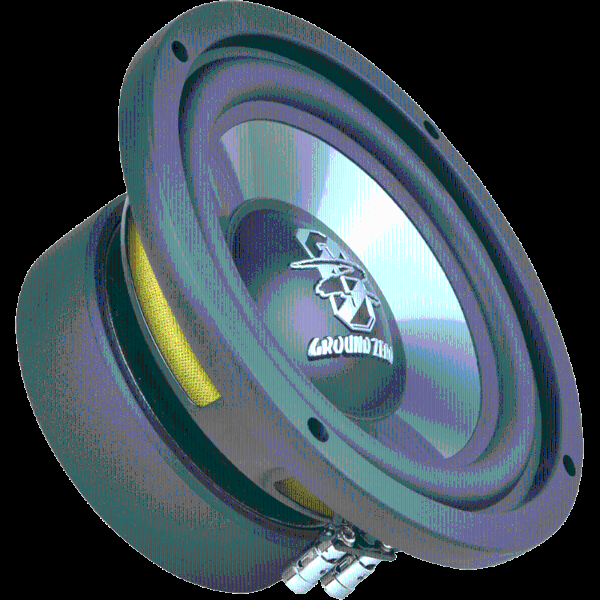

Ground Zero GZIW 165X-II
Rating
DIAM
6"
FS(Hz)
43
VAS(l)
11
QTS
0.36
PWR(W)
200
SPL(dB)
85.4
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
43
Vas(l)
11
Qts
0.36
Qms
6.02
Qes
0.383
Bl(Tm)
9
Mms(gr)
28
Cms(mm/N)
0.489
Rms(kg/s)
1.26
Le(mH)
1.35
Re(Ohm)
3.7
Sd(sq.mm)
12594
Vd(l)
0.202
X-max(mm)
16
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.4
Sensitivity(dB) 2.8-V
88.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
168
Cutout Diameter (mm)
147
Mounting Depth (mm)
80
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Vented, BP6
