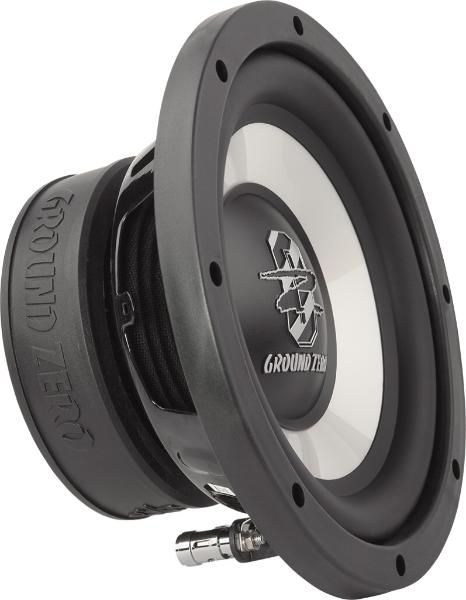

Ground Zero GZIW 250X
Ground Zero GZIW 250X
Model

Ground Zero GZIW 250X

Rating
DIAM
10"
FS(Hz)
30.1
VAS(l)
43.8
QTS
0.44
PWR(W)
400
SPL(dB)
85.9
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
30.1
Vas(l)
43.8
Qts
0.44
Qms
7.89
Qes
0.466
Bl(Tm)
11.5
Cms(mm/N)
0.288
Rms(kg/s)
2.33
Le(mH)
0
Mms(gr)
97
Vd(l)
0.246
Sd(sq.mm)
32746
X-max(mm)
8
X-mech(mm)
0
Re(Ohm)
3.4

General Parameters

Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
129
Magnet Diameter (mm)
126

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
