Model

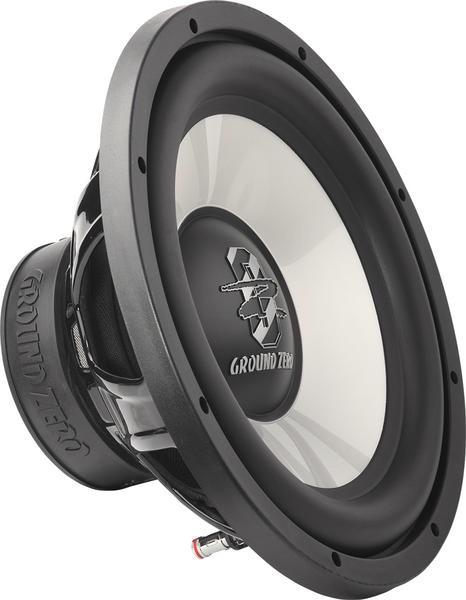

Ground Zero GZIW 300X
Rating
DIAM
12"
FS(Hz)
34.9
VAS(l)
53.6
QTS
0.69
PWR(W)
500
SPL(dB)
86.6
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
34.9
Vas(l)
53.6
Qts
0.69
Qms
6.82
Qes
0.768
Bl(Tm)
11.4
Mms(gr)
131
Cms(mm/N)
0.159
Rms(kg/s)
4.196
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
48754
Vd(l)
0.366
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
287
Mounting Depth (mm)
145
Magnet Diameter (mm)
126
Optimum Enclosures
Enclosures
Closed, BP4
