Model

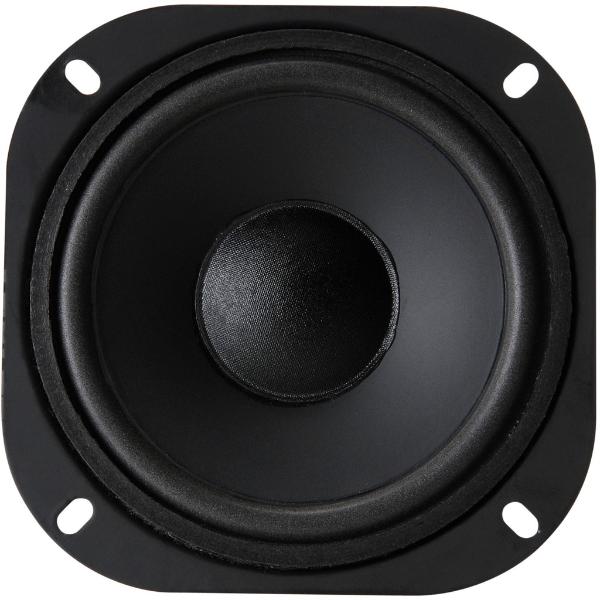

GRS 5PF-8
Rating
DIAM
5"
FS(Hz)
100
VAS(l)
3.1
QTS
1.4
PWR(W)
130
SPL(dB)
84
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
100
Vas(l)
3.1
Qts
1.4
Qms
4.839
Qes
1.97
Bl(Tm)
5.1
Mms(gr)
11
Cms(mm/N)
0.235
Rms(kg/s)
1.4
Le(mH)
0.85
Re(Ohm)
7.5
Sd(sq.mm)
9677
Vd(l)
0.024
X-max(mm)
3
X-mech(mm)
5
General Parameters
Diameter (inch)
5
Max Power(W.)
130
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.15
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
84.1
Mounting Information
Speaker Displacement (l)
1.416
Total Diameter (mm)
129
Cutout Diameter (mm)
121
Mounting Depth (mm)
59
Magnet Diameter (mm)
102
Optimum Enclosures
Enclosures
Closed, BP4
