Model

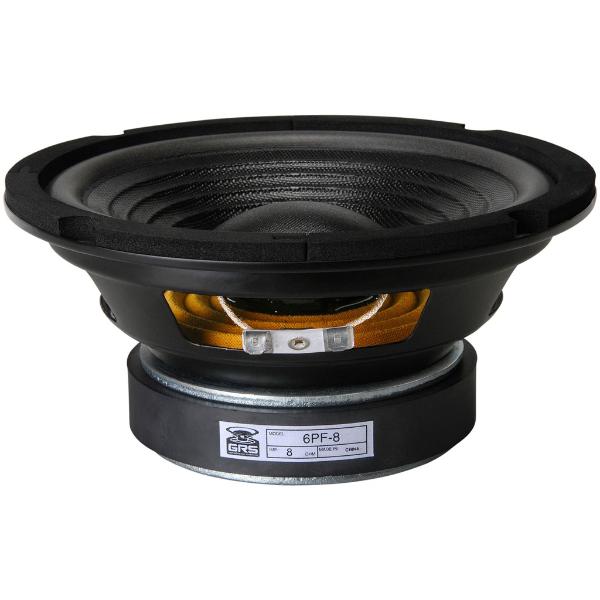

GRS 6PF-8
Rating
DIAM
6"
FS(Hz)
82
VAS(l)
7.1
QTS
0.95
PWR(W)
180
SPL(dB)
86.6
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
82
Vas(l)
7.1
Qts
0.95
Qms
3.67
Qes
1.3
Bl(Tm)
6.5
Mms(gr)
14
Cms(mm/N)
0.268
Rms(kg/s)
1.97
Le(mH)
1.09
Re(Ohm)
7.6
Sd(sq.mm)
13635
Vd(l)
0.041
X-max(mm)
3
X-mech(mm)
6
General Parameters
Diameter (inch)
6
Max Power(W.)
180
RMS Power(W.)
90
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
86.8
Mounting Information
Speaker Displacement (l)
1.557
Total Diameter (mm)
165
Cutout Diameter (mm)
143
Mounting Depth (mm)
78
Magnet Diameter (mm)
114
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
