Model

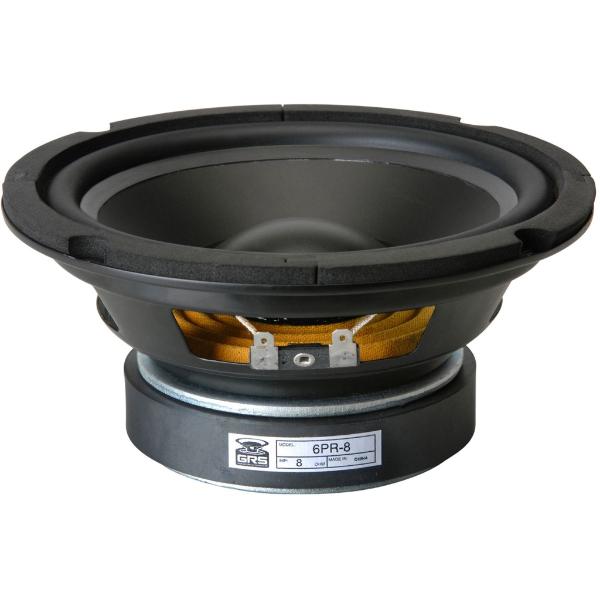

GRS 6PR-8
Rating
DIAM
6"
FS(Hz)
75
VAS(l)
6.8
QTS
1.02
PWR(W)
85
SPL(dB)
85.2
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
75
Vas(l)
6.8
Qts
1.02
Qms
4.323
Qes
1.335
Bl(Tm)
6.8
Mms(gr)
17
Cms(mm/N)
0.258
Rms(kg/s)
1.9
Le(mH)
1.11
Re(Ohm)
7.5
Sd(sq.mm)
13635
Vd(l)
0.041
X-max(mm)
3
X-mech(mm)
6
General Parameters
Diameter (inch)
6
Max Power(W.)
85
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
85.5
Mounting Information
Speaker Displacement (l)
1.557
Total Diameter (mm)
165
Cutout Diameter (mm)
143
Mounting Depth (mm)
78
Magnet Diameter (mm)
114
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
