Model

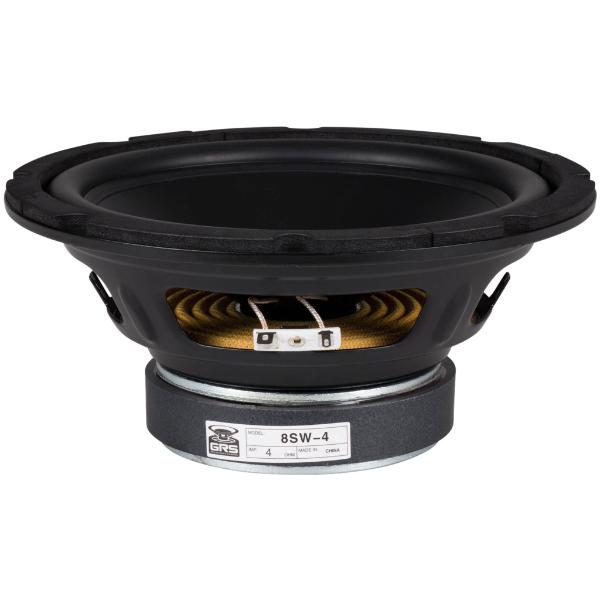

GRS 8SW-4
Rating
DIAM
8"
FS(Hz)
49
VAS(l)
26.3
QTS
0.88
PWR(W)
160
SPL(dB)
88
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
49
Vas(l)
26.3
Qts
0.88
Qms
4.22
Qes
1.19
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
197
Mounting Depth (mm)
102
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
