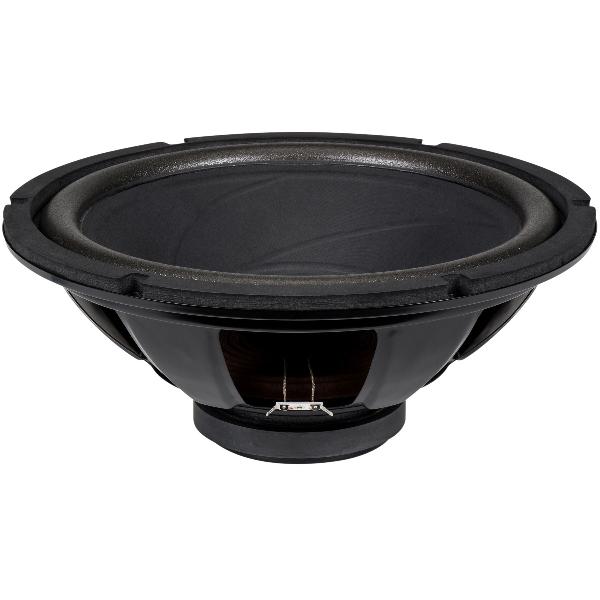

Model
GRS RSRMO-8
Rating
DIAM
15"
FS(Hz)
22
VAS(l)
342.4
QTS
0.56
PWR(W)
250
SPL(dB)
89.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
22
Vas(l)
342.4
Qts
0.56
Qms
4.9
Qes
0.632
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
1.82
Re(Ohm)
7.2
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
250
RMS Power(W.)
125
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.56
Sensitivity(dB) 1-W
89.5
Sensitivity(dB) 2.8-V
89.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
387
Cutout Diameter (mm)
349
Mounting Depth (mm)
159
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
