Model

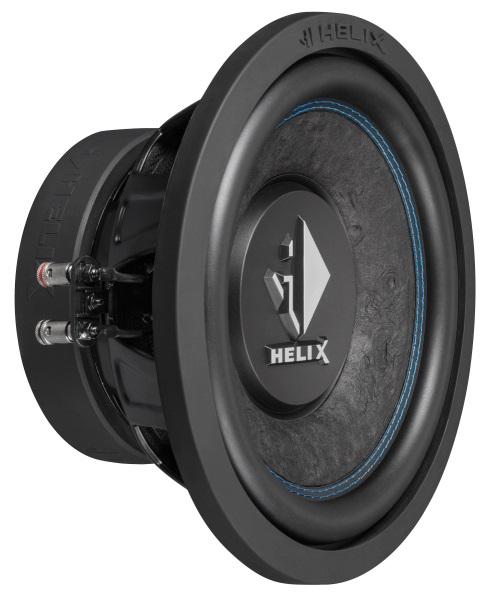

Helix K 10W
Rating
DIAM
10"
FS(Hz)
36
VAS(l)
34
QTS
0.39
PWR(W)
600
SPL(dB)
87.5
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
34
Qts
0.39
Qms
4.5
Qes
0.43
Bl(Tm)
12.3
Mms(gr)
91
Cms(mm/N)
0.215
Rms(kg/s)
4.56
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
33392
Vd(l)
0.267
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
94.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
128
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
