Model

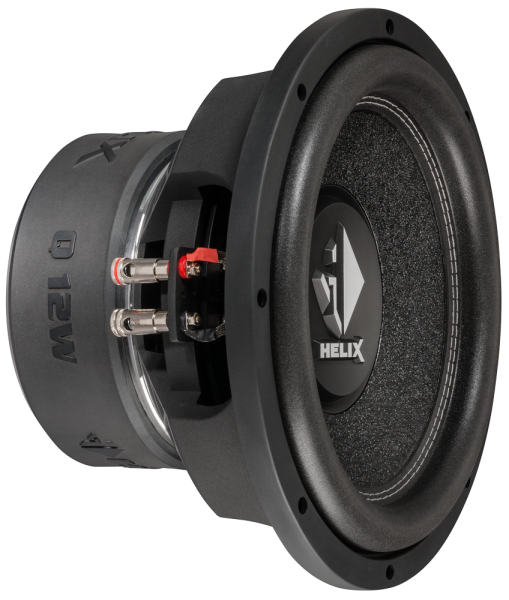

Helix Q 12W
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
24.7
QTS
0.37
PWR(W)
2000
SPL(dB)
86
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
24.7
Qts
0.37
Qms
4.61
Qes
0.402
Bl(Tm)
26.8
Mms(gr)
330
Cms(mm/N)
0.063
Rms(kg/s)
15.74
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
52578
Vd(l)
0.736
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
92.3
Mounting Information
Speaker Displacement (l)
3
Total Diameter (mm)
326
Cutout Diameter (mm)
284
Mounting Depth (mm)
188
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
