Model

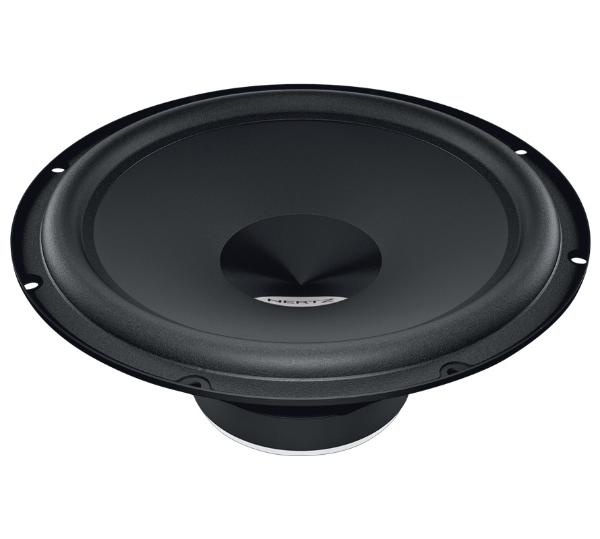

Hertz DS 250.3
Rating
DIAM
10"
FS(Hz)
36
VAS(l)
29
QTS
0.62
PWR(W)
800
SPL(dB)
84.8
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
29
Qts
0.62
Qms
6.35
Qes
0.69
Bl(Tm)
11.8
Mms(gr)
120
Cms(mm/N)
0.163
Rms(kg/s)
4.275
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
35418
Vd(l)
0.354
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.2
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
106
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
