Model

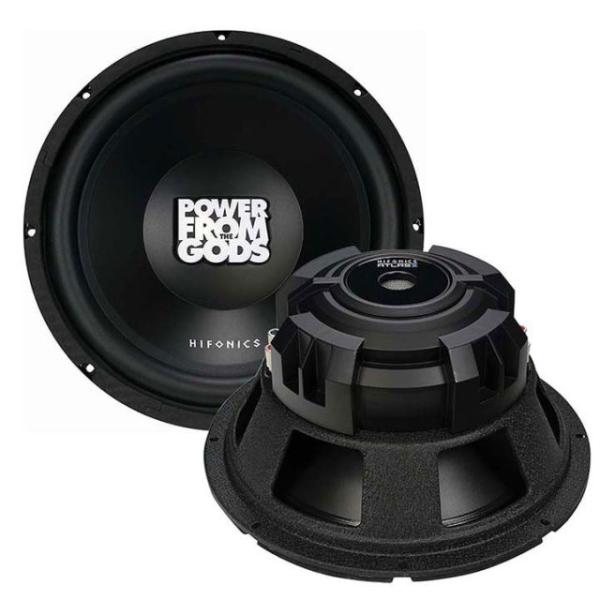

Hifonics AHF15D4
Rating
DIAM
15"
FS(Hz)
25.7
VAS(l)
172.8
QTS
0.51
PWR(W)
1200
SPL(dB)
89.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25.7
Vas(l)
172.8
Qts
0.508
Qms
5.868
Qes
0.556
Bl(Tm)
9.7
Mms(gr)
195
Cms(mm/N)
0.197
Rms(kg/s)
600
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
78640
Vd(l)
0.865
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
352
Mounting Depth (mm)
172
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Closed, BP4
