Model

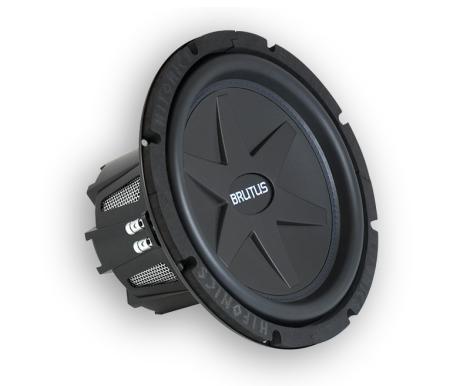

Hifonics B15D2
Rating
DIAM
15"
FS(Hz)
27.6
VAS(l)
122.6
QTS
0.48
PWR(W)
1400
SPL(dB)
88.4
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27.6
Vas(l)
122.6
Qts
0.479
Qms
3
Qes
0.57
Bl(Tm)
10
Mms(gr)
254
Cms(mm/N)
0.131
Rms(kg/s)
14.71
Le(mH)
1
Re(Ohm)
0.9
Sd(sq.mm)
81200
Vd(l)
1.218
X-max(mm)
15
X-mech(mm)
25
General Parameters
Diameter (inch)
15
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.4
Sensitivity(dB) 2.8-V
97.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
350
Mounting Depth (mm)
198
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
