Model

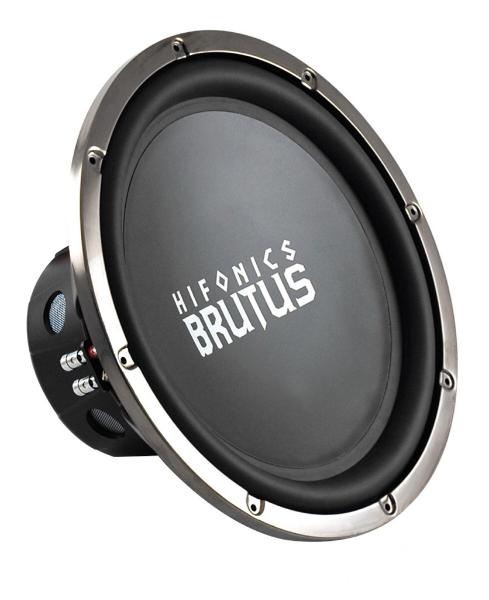

Hifonics BRZ15D4
Rating
DIAM
15"
FS(Hz)
21
VAS(l)
200
QTS
0.5
PWR(W)
1200
SPL(dB)
86.9
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
21
Vas(l)
200
Qts
0.5
Qms
3.5
Qes
0.58
Bl(Tm)
19.6
Mms(gr)
261
Cms(mm/N)
0.22
Rms(kg/s)
4.094
Le(mH)
0
Re(Ohm)
7.7
Sd(sq.mm)
80062
Vd(l)
1.201
X-max(mm)
15
X-mech(mm)
23
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
87.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
