Model

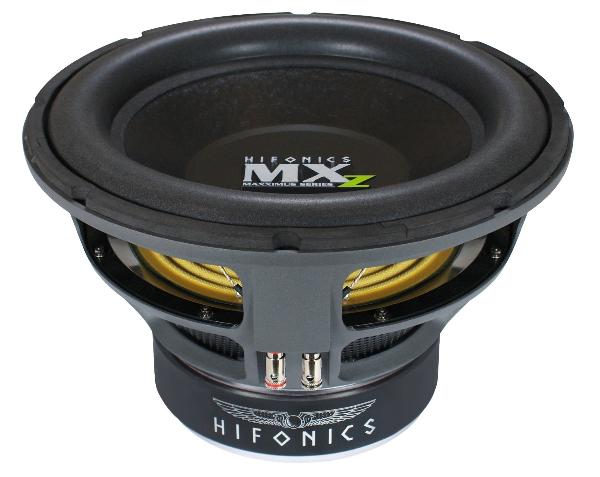

Hifonics MAXXIMUS MXZ 12D4
Rating
DIAM
12"
FS(Hz)
34
VAS(l)
45
QTS
0.4
PWR(W)
2000
SPL(dB)
88
IMP(Ohm)
4x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
45
Qts
0.4
Qms
5.29
Qes
0.433
Bl(Tm)
17.5
Mms(gr)
194
Cms(mm/N)
0.113
Rms(kg/s)
7.826
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
53000
Vd(l)
0.583
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.39
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
92
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
175
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
