Model

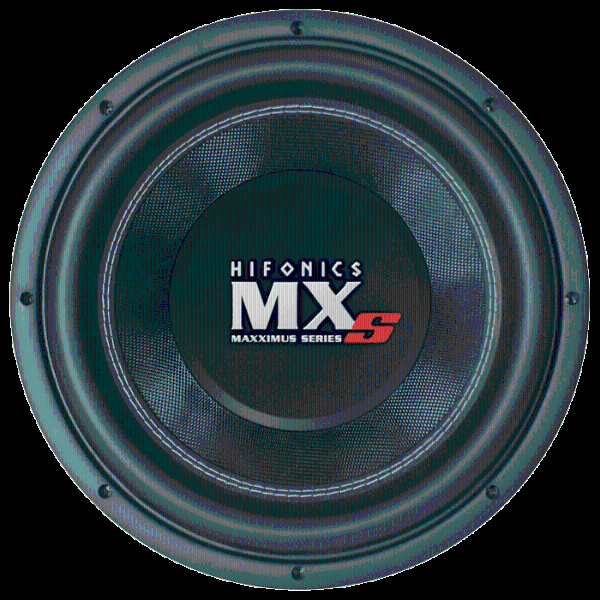

Hifonics MXS-12D2
Rating
DIAM
12"
FS(Hz)
31
VAS(l)
30
QTS
0.44
PWR(W)
3000
SPL(dB)
84.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31
Vas(l)
30
Qts
0.44
Qms
2.7
Qes
0.53
Bl(Tm)
22
Mms(gr)
308
Cms(mm/N)
0.086
Rms(kg/s)
22.219
Le(mH)
1.62
Re(Ohm)
4.3
Sd(sq.mm)
49716
Vd(l)
1.143
X-max(mm)
23
X-mech(mm)
30
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
86.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
318
Cutout Diameter (mm)
283
Mounting Depth (mm)
216
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
