Model

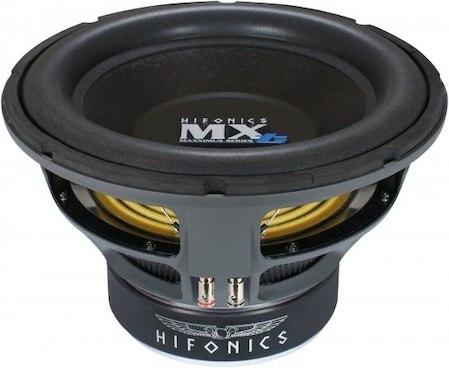

Hifonics MXT12D2
Rating
DIAM
12"
FS(Hz)
26
VAS(l)
98
QTS
0.26
PWR(W)
1500
SPL(dB)
90
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
98
Qts
0.26
Qms
11.5
Qes
0.266
Bl(Tm)
16
Mms(gr)
129
Cms(mm/N)
0.29
Rms(kg/s)
1.833
Le(mH)
1.59
Re(Ohm)
3.2
Sd(sq.mm)
48813
Vd(l)
0.488
X-max(mm)
10
X-mech(mm)
20
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.62
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
93.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
314
Cutout Diameter (mm)
284
Mounting Depth (mm)
175
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
