Model

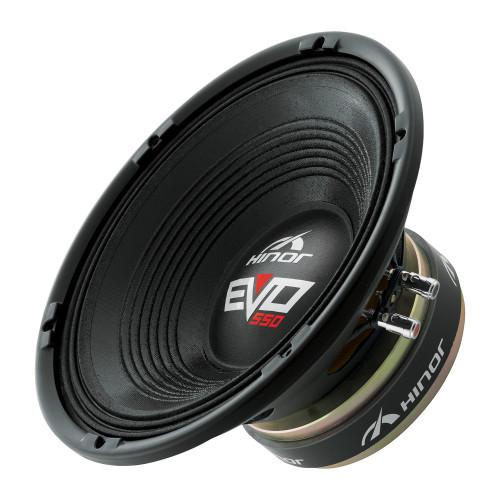

Hinor 12EVO550-4
Rating
DIAM
12"
FS(Hz)
84.5
VAS(l)
18.65
QTS
0.51
PWR(W)
1100
SPL(dB)
94.8
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
84.5
Vas(l)
18.6
Qts
0.512
Qms
5
Qes
0.571
Bl(Tm)
13.7
Mms(gr)
75
Cms(mm/N)
0.047
Rms(kg/s)
8
Le(mH)
0
Re(Ohm)
2.7
Sd(sq.mm)
53100
Vd(l)
0.186
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1100
RMS Power(W.)
550
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.9
Sensitivity(dB) 1-W
94.8
Sensitivity(dB) 2.8-V
99.5
Mounting Information
Speaker Displacement (l)
3.7
Total Diameter (mm)
305
Cutout Diameter (mm)
280
Mounting Depth (mm)
140
Magnet Diameter (mm)
157
Optimum Enclosures
Enclosures
Vented, BP6P
