Model

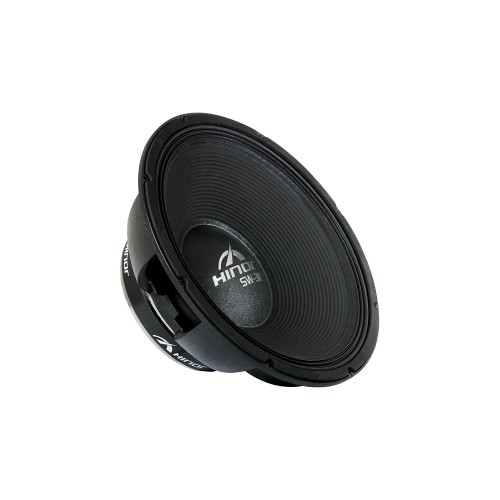

Hinor 15SW3K
Rating
DIAM
15"
FS(Hz)
45.8
VAS(l)
61.98
QTS
0.31
PWR(W)
3000
SPL(dB)
94.6
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
45.8
Vas(l)
62
Qts
0.31
Qms
6.4
Qes
0.33
Bl(Tm)
23.6
Mms(gr)
199
Cms(mm/N)
0.061
Rms(kg/s)
8.93
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
85500
Vd(l)
0.51
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.74
Sensitivity(dB) 1-W
94.6
Sensitivity(dB) 2.8-V
97.1
Mounting Information
Speaker Displacement (l)
8.1
Total Diameter (mm)
390
Cutout Diameter (mm)
360
Mounting Depth (mm)
170
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Vented, BP6P
