Model

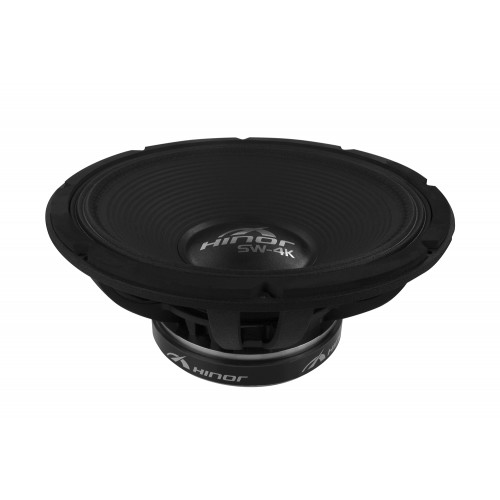

Hinor 15SW4K
Rating
DIAM
15"
FS(Hz)
48.8
VAS(l)
45.02
QTS
0.32
PWR(W)
4000
SPL(dB)
93.7
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
48.8
Vas(l)
45
Qts
0.32
Qms
6.1
Qes
0.338
Bl(Tm)
25.9
Mms(gr)
242
Cms(mm/N)
0.044
Rms(kg/s)
12.14
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
85500
Vd(l)
0.599
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.49
Sensitivity(dB) 1-W
93.7
Sensitivity(dB) 2.8-V
97.9
Mounting Information
Speaker Displacement (l)
8.1
Total Diameter (mm)
390
Cutout Diameter (mm)
360
Mounting Depth (mm)
170
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Vented, BP6P
