Model

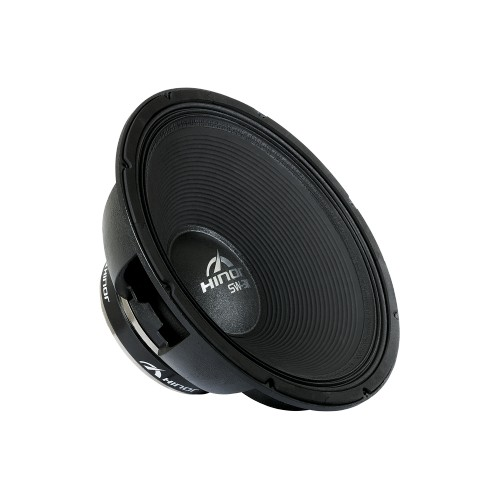

Hinor 18SW3K
Rating
DIAM
18"
FS(Hz)
42.9
VAS(l)
101.88
QTS
0.36
PWR(W)
3000
SPL(dB)
95.1
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42.9
Vas(l)
101.9
Qts
0.36
Qms
6
Qes
0.38
Bl(Tm)
24.8
Mms(gr)
269
Cms(mm/N)
0.051
Rms(kg/s)
12
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
119500
Vd(l)
0.717
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.04
Sensitivity(dB) 1-W
95.1
Sensitivity(dB) 2.8-V
99.1
Mounting Information
Speaker Displacement (l)
11.6
Total Diameter (mm)
460
Cutout Diameter (mm)
430
Mounting Depth (mm)
195
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Vented, BP6P
