Model

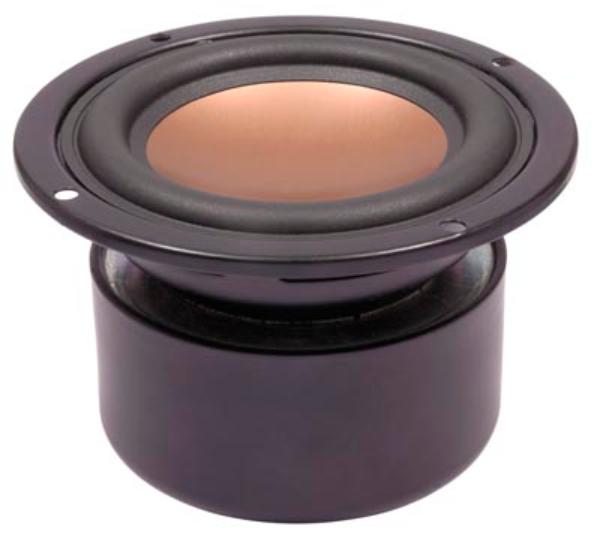

HiVi B3N
Rating
DIAM
3"
FS(Hz)
77
VAS(l)
1.7
QTS
0.86
PWR(W)
30
SPL(dB)
80.4
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
77
Vas(l)
1.7
Qts
0.86
Qms
4.48
Qes
1.07
Bl(Tm)
3.1
Mms(gr)
3
Cms(mm/N)
1.335
Rms(kg/s)
0.346
Le(mH)
0
Re(Ohm)
6.6
Sd(sq.mm)
3000
Vd(l)
0.009
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
30
RMS Power(W.)
15
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
80.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
71
Mounting Depth (mm)
53
Magnet Diameter (mm)
68
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
