Model

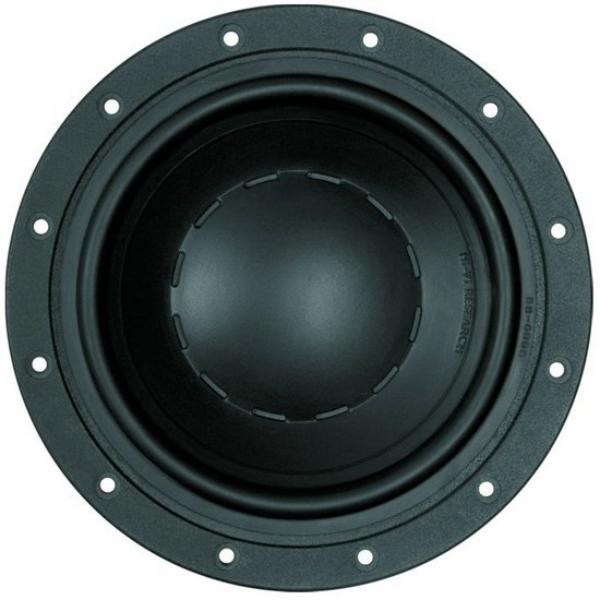

HiVi D6.8
Rating
DIAM
6"
FS(Hz)
43
VAS(l)
13.5
QTS
0.45
PWR(W)
120
SPL(dB)
85.2
IMP(Ohm)
8x0
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
43
Vas(l)
13.5
Qts
0.45
Qms
5.21
Qes
0.49
Bl(Tm)
8.9
Mms(gr)
22
Cms(mm/N)
0.626
Rms(kg/s)
1.14
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
12100
Vd(l)
0.064
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
0
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
136
Mounting Depth (mm)
76
Magnet Diameter (mm)
105
Optimum Enclosures
Enclosures
Vented, BP6
